| Place of Origin: | Shenzhen |
| ブランド名: | RYGH Tech; OEM or ODM available |
| 証明: | CE, ROHS |
| Model Number: | RYGH804C-FL100W-2835-135-V3.0 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| 価格: | USD9.02-USD9.72 |
| Packaging Details: | Paper carton+Foam, export standard |
| Delivery Time: | sample order 5-6 working days, Bulk order 7-15 working days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 50000 pieces/quarter |
| Mateial: | AL thermal conductive 1.6 | LED: | SMD9V/2835 135pcs |
|---|---|---|---|
| Power: | 100W | Power Factor: | 0.98 |
| Surge Protection: | 4KV | Lumen(lm): | 11000lm±5% |
| CCT(K): | 3000-6000K | CRI: | >80 |
| Beam Angle: | 140° | Life time(H): | >30,000 |
| Working Temp: | -30℃ ~ 55℃ | Size: | W110mm*162mm |
| ハイライト: | led high bay gym lighting,led high bay luminaire |
||

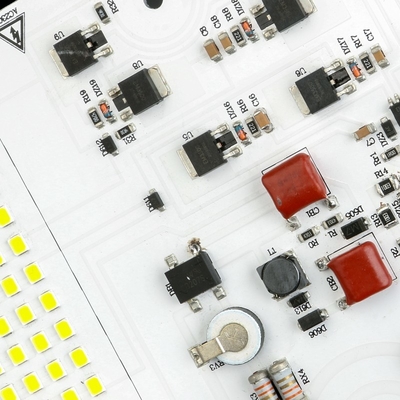

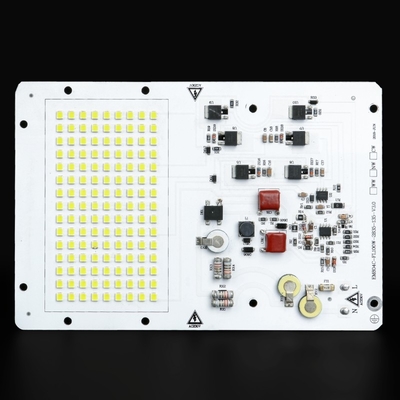

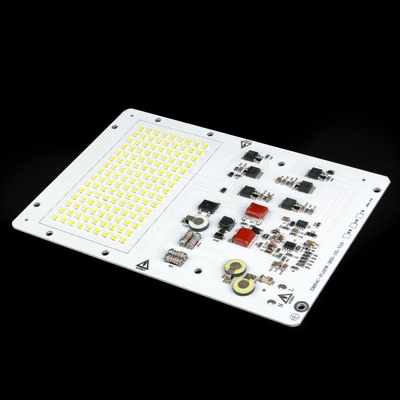

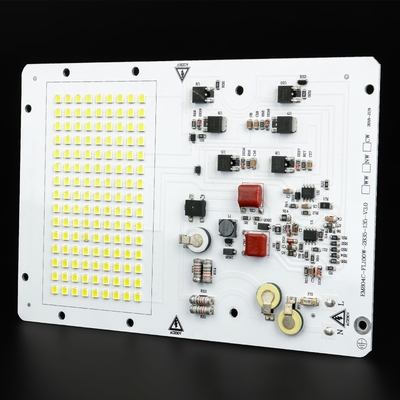

Bridgelux LED Board AC200-300V 3-5 years warranty SMD9V/2835 Driverless 100W LED flood light SKD for DIY
| Part no.: | RYGH804B-FL100W-2835-80-V3.0 |
| Power: | 100W Max |
| Voltage: | AC200-300V |
| Beam Angle | 140° |
| Color tempera-ture (K) | 3000-6000K |
| Working Temperature: | -30-55℃ |
| Life time(H) | >30,000 |
| Lumen(lm) | 11000lm±5% |
| CCT: | 3000K-6000K |
| CRI: | >80 |
| LED | SMD9V/2835 135pcs |
| Size | W110mm*162mm |
Our advantages:
1, Our engineer has 15 years experience in led lighting field
2, 6 years focus on AC linear led lighting
3, 3nd Generation Linear IC from Top Taiwan Team-Vendor of AURORA Lighting
4, Driverless led lighting already worked 4-5 years all over the world, failure rate <0.5%
5, Working voltage max 300V, other company max 265V
6, , With OVP, OCP, OTP
7, Pass Safety Certification, EMC/EMI
8, 100W and 150W 6KVA Surge Protection, 200W 4KVA Surge Protecion
9, China LED 3 years warranty, Bridgelux LED 5 years warranty,
10, Can be work in harsh environment from minus 40 degrees to 50 degrees
Application:
